Hardware for Capoworks ECU

Currently there is a good amount of hardware options to choose depending on your specific needs. From simple plug and play solutions, to full wire-in universal ECU's. All under the same ecosystem and pretty similar architecture. Most recent offerings consist of a two-part system. A brain board that gets attached to a daughter board, or base-board as we call it, it contains the wiring harness connector and any additional circuitery for added functionality.

Brain Boards​

This is where the real action happens. Designed to be consistent across different base board applications to simplify design, ensure repeatability, and reduce cost.

  • Atlas (formerly Polygonus)

Base Boards​

This is where brain boards get attached to.

Wire-In​

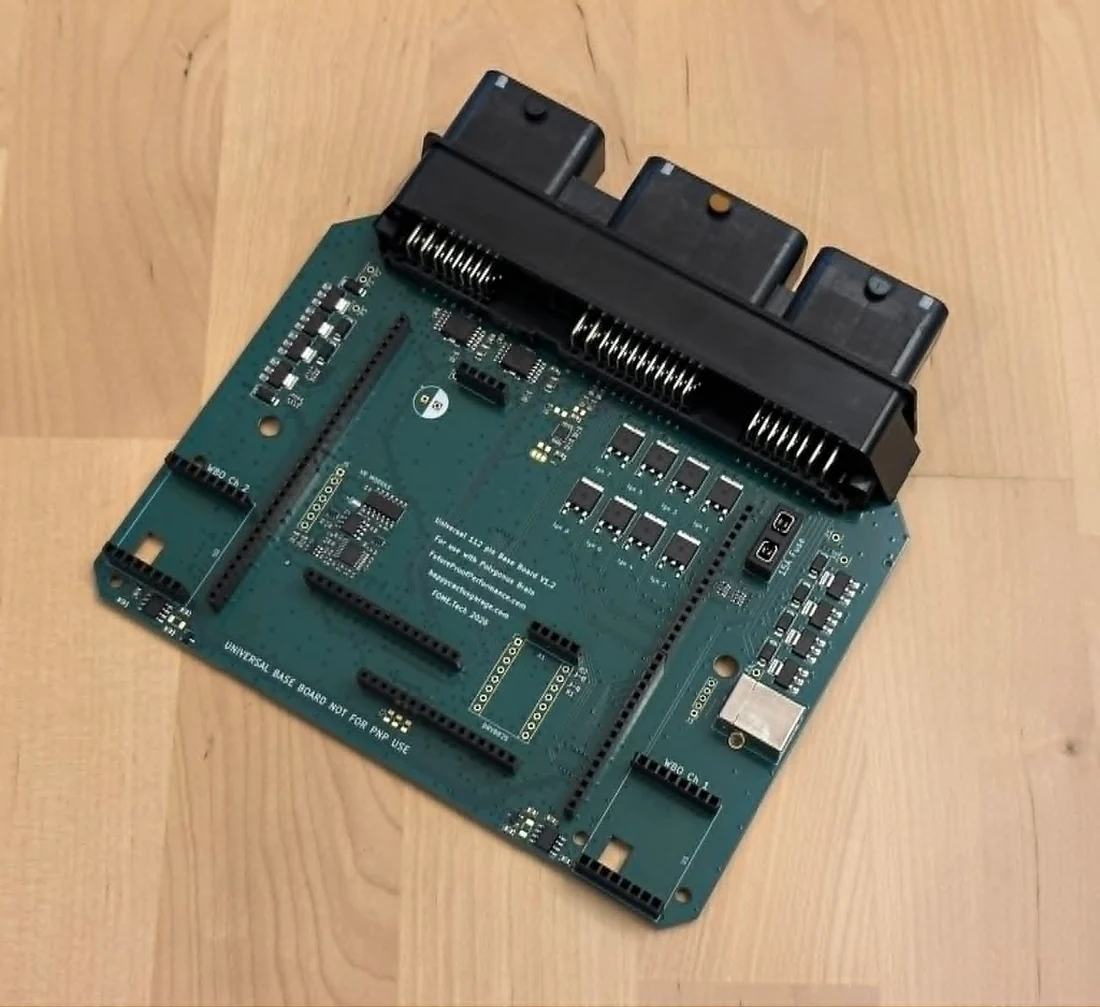

Universal 112 base board

This is Ideal for Custom Wiring Harnesses, complex engine swaps, or peope willing to cut and modify their OEM harnesses to use another connector.

Plug-And-Play​

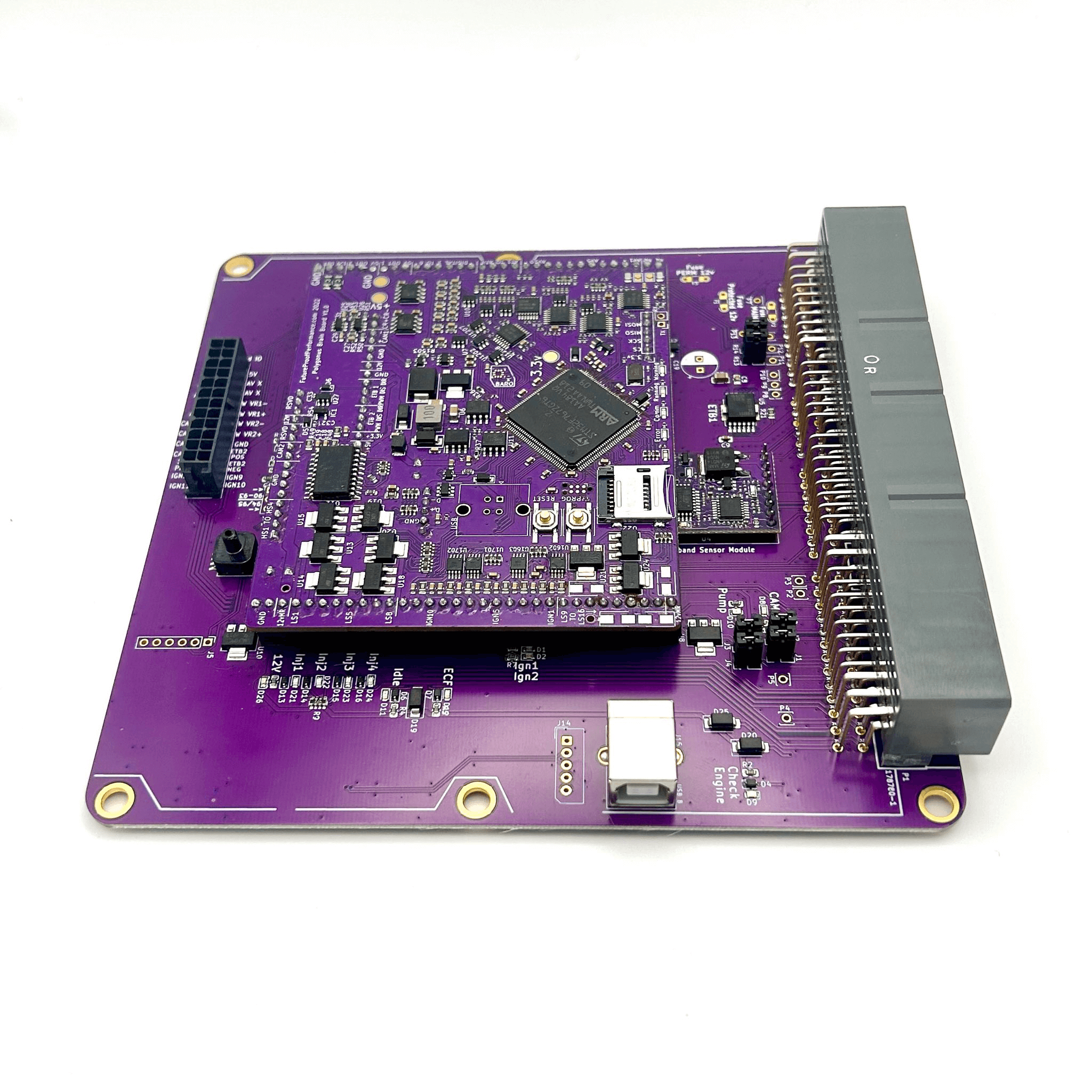

Archived upstream PnP example

Archived upstream PnP example Offered and Supported by Third Parties. Often Fully assembled solutions unless stated otherwise. Either Brain + Baseboard or Custom All-in-One boards with OEM connector for several makes and models. Some of them include housing/enclosure. And others are meant to replace the OEM ECU PCB inside of the original ECU case.

RusEFI​

Some older pre-fork rusEFI ECUs may be compatible with a matching Capoworks firmware build. Confirm the board target and compatible definition in the Capoworks firmware release notes, and use the firmware and .ini from that same bundle.

  • Proteus (F4,F7,H7 Microcontroller)
  • MicroRusEFI (F4,F7)
  • Hellen PnPs (Hellen 128 Mercedes, Hellen Miata NB1-NB2, NA6-NA8)
